Quick answer: A vented carbon fiber hood is worth buying when it is a genuinely structural composite panel, matches your exact chassis and model year, preserves safe latch operation, clears everything below it and has a documented airflow and water-control plan. The weave and vent shape alone prove none of those things. Before paying, verify construction, underside reinforcement, hardware, panel gaps, extraction strategy, drainage, weight, UV protection, freight packaging and after-sale support.
This guide turns those checks into a repeatable buying process for street-car owners, workshops and distributors comparing vented replacements. It is based on published composite-hood research, U.S. hood-latch rules and manufacturer service evidence—not on the claim that every vent extracts heat or every carbon panel saves the same amount of weight.
Last reviewed: October 3, 2026. Prepared by the RevexaAuto Technical Team. Always follow the vehicle maker’s service information and the hood manufacturer’s instructions.
What is a real carbon fiber hood?
A true composite hood uses carbon-fiber reinforcement inside a resin matrix for a meaningful portion of the panel and its load-carrying structure. It may still contain fiberglass, foam or honeycomb core, bonded inner frames, metal inserts and local reinforcements. That does not make it fake. It means the part is an engineered assembly rather than a sheet of visible weave.
Do not confuse four very different products:
| Construction | What it is | Likely benefit | Question to ask |
|---|---|---|---|
| Structural CFRP hood | Carbon-fiber laminate carries panel loads, normally with a bonded inner structure | Potential mass reduction with stiffness tailored by laminate and geometry | What are the full-part mass, layup, core and insert details? |
| Carbon/fiberglass hybrid | Visible carbon skin combined with glass-fiber backing or reinforcement | Lower cost; performance depends on the complete design | Which areas are carbon, glass, core and metal? |
| Carbon overlay | A thin cosmetic carbon layer added over another panel | Appearance, but usually little structural or mass advantage | Is the original substrate still present? |
| Printed wrap or hydrographic film | A surface pattern that imitates weave | Cosmetic change only | Is any carbon reinforcement used at all? |
The distinction matters because carbon fibers are highly directional. Strength and stiffness depend on fiber orientation, fiber fraction, resin, consolidation, cure, thickness, joints and geometry. A glossy 2×2 twill top layer tells you little about what happens around the hinges, latch or vents. The U.S. Department of Energy’s overview of lightweight materials for vehicles explains the broad reason automakers pursue composites, while its carbon-fiber research summary also shows that cost, joining and high-volume manufacturing remain central engineering issues.
Wet layup, vacuum infusion and prepreg: which is better?
Short answer: process quality matters more than the marketing label, but a controlled prepreg or well-executed closed-mold process can produce more consistent fiber/resin content than casual hand layup.
- Hand or wet layup: dry fabric is wetted with resin in the mold. It can produce a useful part, but workmanship strongly affects excess resin, voids and thickness consistency.
- Vacuum-assisted processing: atmospheric pressure helps consolidate the laminate and evacuate air. The exact method, consumables and cure still matter.
- Prepreg: reinforcement arrives with controlled resin content and is cured under specified temperature and pressure. Good tooling and process control remain essential.
- Autoclave cure: heat, vacuum and external pressure can improve consolidation. It is not a guarantee of correct inserts, geometry or surface finish.
A peer-reviewed study on the design, manufacturing and testing of CFRP front-hood concepts treats the hood as a complete structural system, including laminate selection, manufacturing and physical validation. Another research project on a carbon/basalt hybrid automobile engine hood demonstrates why material combinations, crash behavior and design targets must be evaluated together. Use studies like these to judge the quality of a supplier’s questions and evidence, not to assume their exact results apply to an unrelated aftermarket panel.
Nine carbon fiber hood checks before you buy
- Confirm the chassis code and production range. A sales name such as IS, 3 Series or 720S can span several bodies and facelifts. Ask the supplier to state the supported chassis and year range in writing.
- Match body and trim differences. Headlamp shape, bumper height, fender edge, washer jets, hood seals and underhood packaging can change between trims.
- Ask for complete construction details. Identify the outer skin, inner frame, core, hinge plates, latch reinforcement and any fiberglass content. “Dry carbon” should not be the entire technical answer.
- Request the actual complete-part mass. Compare a finished hood with all supplied inserts—not a bare coupon or an estimated percentage. Record the mass of any pins, brackets or transferred hardware too.
- Verify hinge and latch provisions. The part must provide sound, correctly located load paths. Ask whether factory hinges, gas struts, bump stops and primary/secondary latches are retained.
- Check every underside clearance. Include engine movement, intake, strut brace, caps, insulation, wipers, cowl trim and washer lines. A panel can look aligned while touching a moving component below.
- Understand the vent plan. Openings need water management, heat-safe edges, screens or rain trays where appropriate and a path that does not pour water onto vulnerable electrical or ignition parts.
- Inspect finish and UV strategy. Clarify whether the panel is clear-coated, gel-coated, primed or supplied for paint. Ask what maintenance and refinishing the warranty requires.
- Plan freight and test-fit terms. Large panels need rigid packaging, corner protection and a documented inspection window. Confirm whether an unpainted, undrilled test-fit can be returned if the application is wrong.
These checks make the product page useful instead of merely attractive. For example, compare the listed application of RevexaAuto’s vented hood for earlier Lexus IS models with the OEM-style hood for 2021–2025 Lexus IS 300/350/500. Similar names do not make the panels interchangeable. The RC F-style vented 2014–2020 Lexus IS hood and V2 vented 2021+ Lexus IS replacement also illustrate why styling and application must be read separately.
How much is a carbon fiber hood?
There is no credible universal price. Cost changes with panel size, tooling, laminate schedule, visible-surface requirements, core and reinforcement design, cure process, included hardware, quality control, order volume, crating, freight, duties and paint or clear-coat work. A low online price can become expensive after oversize shipping, local correction and refinishing.
Compare quotations on the same basis:
- finished hood plus inner structure, inserts and hardware;
- surface supplied as exposed weave, clear-coated, gel-coated or paint-ready;
- packaging method and freight insurance;
- duties, broker fees and destination delivery;
- professional test-fit, alignment, drilling and finish labor;
- replacement policy for transit damage or verified manufacturing defects.
For B2B sourcing, ask for a pre-shipment inspection standard. Useful checkpoints include weave alignment, pinholes, surface print-through, edge finish, bonded-joint continuity, insert position, thread condition, diagonal dimensions, mounting-hole position and packaging photos. A sample approval does not replace per-batch inspection.
How much weight does a carbon fiber hood save?
The honest answer is: subtract measured finished masses for your exact application. Do not apply a generic percentage from a research prototype, an OEM supercar or a different hood geometry. A large steel clamshell, an aluminum panel and a compact stamped hood start from different baselines. Reinforcement, core, vents, hardware and paint can change the result.
Mass removed near the front and relatively high on the body may affect total mass distribution and the effort needed to lift the panel, but do not promise handling or braking gains without vehicle-level measurement. Ask the seller to provide the scale, configuration and tolerance behind any number. If a comparison excludes the factory latch or includes no inner frame, it is not like-for-like.

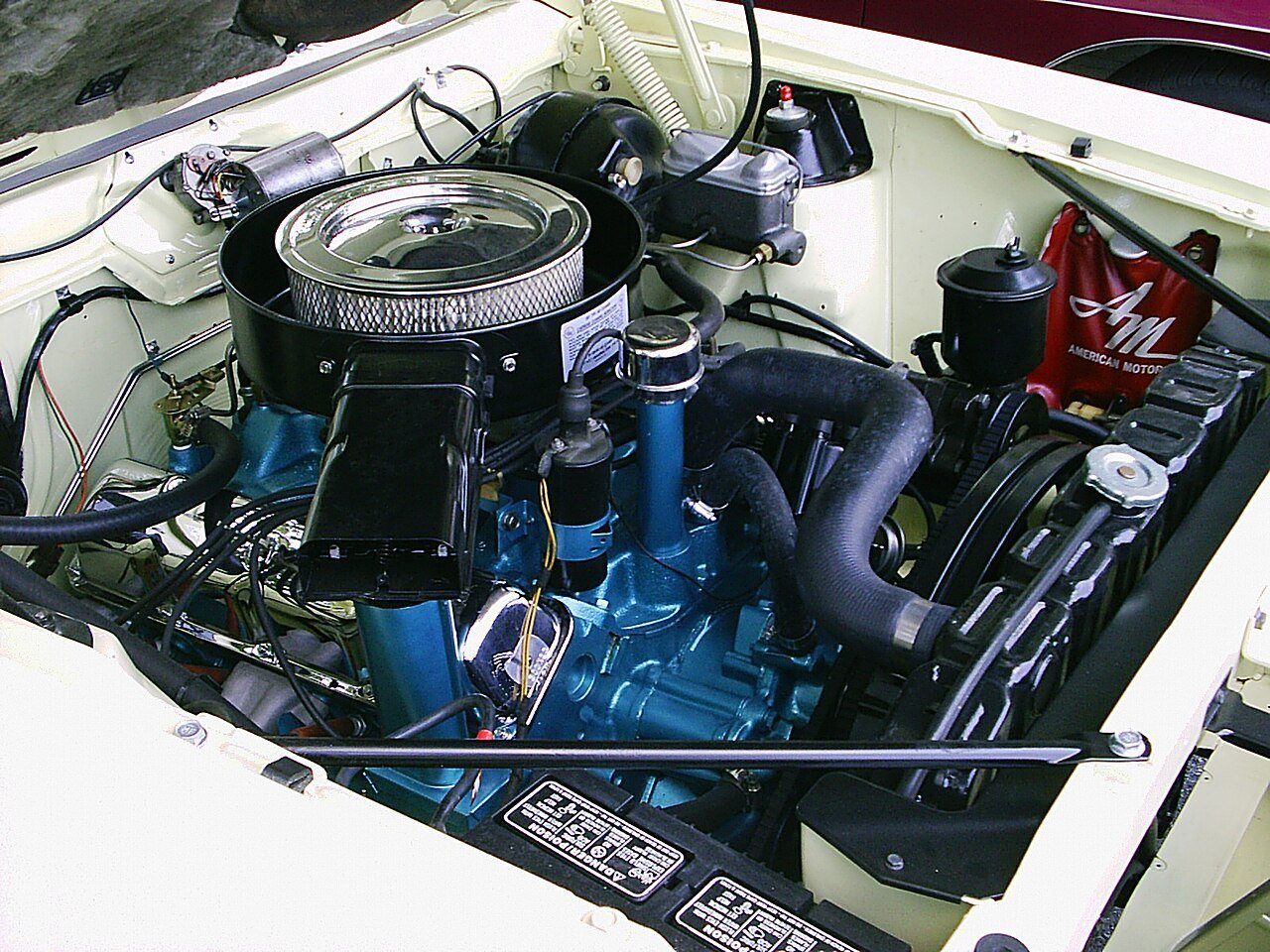

Do hood vents really reduce heat?
Vents can provide an exit or inlet for airflow, but their effect depends on local pressure, opening position, ducting, seal strategy, vehicle speed, fan operation and the heat sources below. A hole positioned in a high-pressure zone may not extract air as expected. A visually aggressive opening can also create water, debris, noise and underhood-pressure issues.
Choose venting by use case:
- Street use: prioritize drainage, weather exposure, fan-driven low-speed cooling and protection of electronics.
- Track use: use measured temperatures or pressure data before and after the change; inspect for tire-rubber and debris entry.
- Show use: confirm that cosmetic openings do not compromise latch reinforcement, inner-frame bonds or paint edges.
If the supplier cannot explain where the air comes from and where it goes, treat “extracts heat” as a hypothesis rather than a result. The best answer may include a removable rain tray, but that tray can also change airflow; test the actual configuration you drive.
Hood latch, pins and road safety
A hood is a safety-critical moving body panel. In the United States, Federal Motor Vehicle Safety Standard No. 113 addresses hood-latch systems for vehicles covered by the rule. NHTSA has also explained the purpose and application of that standard in a formal interpretation. An aftermarket supplier should not turn this into a claim of regulatory certification unless it has the evidence and legal basis to do so.
Keep both the primary and secondary latch functions when the design calls for them. Inspect the striker engagement, release cable, hinge fasteners, bump stops and panel height. Close the hood gently during initial fitting and never slam a misaligned panel. Hood pins may be required by a product maker or motorsport rule set, but they do not excuse a weak inner structure or careless drilling.
Service evidence also shows why finish defects cannot be dismissed automatically. A manufacturer bulletin preserved by NHTSA documents carbon-fiber hood delamination inspection and repair for one specific vehicle population. It does not prove that every cloudy area is structural failure, but it supports inspecting bubbles, lifting edges, cracks around inserts and laminate separation promptly.
Installation and first-drive inspection
- Photograph the factory gaps, latch, hinges, bump stops, washer routing and underside clearances.
- Support the original panel safely; a hood is awkward even when light.
- Transfer only the hardware specified by the new-panel instructions.
- Set the replacement on padded supports and inspect both surfaces, edges, inserts and bonds before fitting.
- Start fasteners by hand. Align progressively; do not pull a distorted panel into place with bolts.
- With the latch disabled or carefully controlled according to the service procedure, lower the panel slowly and check all contact points.
- Adjust bump stops and striker only within the correct service procedure. Confirm full primary and secondary engagement.
- Test washer lines, wipers, lighting service access and hood release. Add pins only where required and professionally reinforced.
- After a short low-speed drive, inspect witness marks, fasteners, latch operation, vent trays and edge movement. Recheck at the maker’s interval.
Do not copy torque values from another model or an online forum. The correct value depends on the hinge, insert, bolt and vehicle service information. Over-tightening can crush a laminate or spin an insert; under-tightening can allow movement.
Finish care and damage checks
Wash with automotive-safe products and avoid aggressive polishing across thin edges or raised weave. Store outdoor cars with the finish maker’s UV recommendations in mind. Clear coat can yellow, craze or lose adhesion; the composite underneath may be unaffected, or the change may signal deeper damage. Diagnose rather than guess.
After an impact, inspect the outer skin and the underside because composites can hide internal damage. Look around hinge plates, latch reinforcement, vent corners and bonded flanges. A dull sound, whitening, a raised edge or a crack that grows under light pressure deserves professional assessment. Sanding into structural fibers is not cosmetic repair.
Final buyer checklist
- Exact chassis, years, body style and trim documented.
- Complete construction, inner frame, core, inserts and fiberglass content disclosed.
- Finished mass measured in a like-for-like configuration.
- Factory hinge, latch, bump-stop and washer compatibility explained.
- Underhood and cowl clearances verified for the exact engine and options.
- Vent airflow purpose and water-management plan stated.
- Surface type, UV protection and refinishing instructions supplied.
- Installation instructions and application-specific fastener guidance available.
- Packaging, transit-inspection window and test-fit return terms accepted before shipment.
Frequently asked questions
Do I need hood pins?
Follow the hood maker, vehicle maker and motorsport organizer. Some aftermarket designs require pins; others are engineered around the factory latch. If pins are used, their mounting path and panel reinforcement must be suitable. Do not treat decorative pins as safety hardware.
Can I paint a carbon hood?
Usually, if the surface system is compatible and properly prepared. Confirm whether the hood is clear-coated, gel-coated or supplied in primer, then use a refinisher experienced with composites. Painting can be the best route when weave appearance is less important than OEM color match and long-term repairability.
Will every hood fit with OEM panel gaps?
No supplier should promise that without accounting for vehicle tolerances, prior collision repair, hinge position, adjacent-panel alignment and installation skill. A quality part should be dimensionally controlled, but professional test fitting before paint or drilling is still essential.
Is prepreg always stronger than wet carbon?
No. Prepreg describes a material and process route, not the complete design. Fiber grade, orientation, thickness, cure, voids, core, inserts, joints and geometry decide the performance of the finished panel.
Where can I compare current applications?
Use application-specific listings, such as RevexaAuto’s Novi-style McLaren 720S/750S/765LT hood, then confirm the exact model, market and production year with the seller before ordering.
Bottom line: buy a hood as a safety-critical engineered assembly. Construction evidence, exact fitment and latch integrity matter more than a perfect weave photograph.
